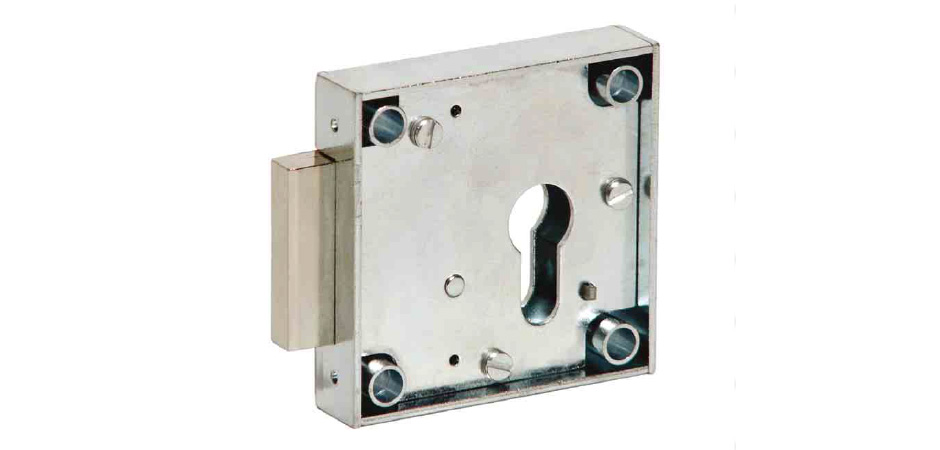

Curator 80





Locksmiths Wholesalers large_curator80





Information:

Lock with dead bolt prepared for cylinder.
This lock is suitable for external applications as the entire surface is surface treated.
It is available with a double-bitted locking (for interior applications) as an option.
The profile cylinder is not included in the delivery.

Options & Accessories:

Lock: Order Code:
Curator 80 – standard 72081



Options: Option Code:
Lock with 3-way closure SDS
Lock with double-bitted locking
– 7 levers, electrolytic galvanised steel
– Key retained when in open position
– Right hand lock, opening clockwise		 SDB
Not key retained when in open position, not suitable for access doors (only for option SDB) SAB
Key guide projecting 4.5 mm, aluminium EV1 anodised, Ø 29.5 mm, riveted (only for option SDB) SFA4.5
Key guide projecting 7 mm, aluminium EV1 anodised, Ø 29.5 mm, riveted (only for option SDB) SFA007
Key guide projecting 8.5 mm, aluminium EV1 anodised, Ø 29.5 mm, riveted (only for option SDB) SFA8.5
Key guide projecting 12.5 mm, aluminium EV1 anodised, Ø 29.5 mm, riveted (only for option SDB) SFA12.5
Left hand lock (Opening counter-clockwise) SLG
Accessories: Order number:
Mounting plate 2 mm thick with threaded bushings, screws and securing rings 3 118 000 600
Manganese steel plate 1.5 mm thick 2 130 001 280

Lock:

    • Prepared for profile cylinder
    • Steel lock case, surface treated
    • Die-cast bolt, surface treated, throw 12mm
    • Weight approx. 380 g



  • Admissible mounting positions
  • Right hand lock, opening clockwise

Keys:

Materal: Length(mm): Usable Length(mm): Key Bow: Option code:
User double-bitted keys with lock and permutation number, nickel-plated (only for option SDB)
Brass 55 18 Oval DSM055
Steel 55 18 Oval DST055
